8.3 Polarimeter
The polarimeter can be connected to any receiver and receives directly 2 analog inputs from the Front End corresponding to the circular polarizations. It supplies 4 outputs in 2x400 MHz sub-bands :
 |
Total power measurement on the two channels :Stokes I1, I2 |
|
Linear polarizations measurements : Stokes Q,U |

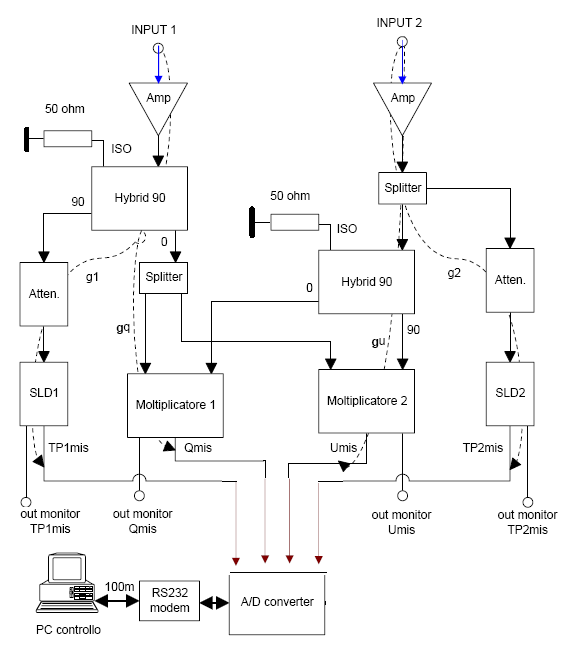

Fig. 8.5 : Polarimeter, sketch
The available bandwidths may be considered less then what is reported because of interferences.
