BACK END

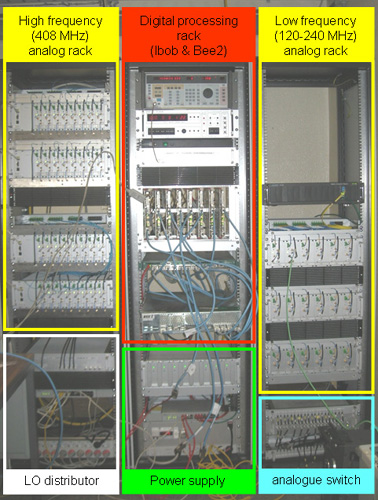

The BEST-3lo and BEST-2 share the same back end. In order to select the right input signal from BEST-2 or from BEST-3lo, an analogue switch is provided. As shown in the figure below, the back end is in the central rack. In the right and left part there are the BEST-2 and BEST-3lo receivers.
 |
The back-end was realized from Berkeley University. Three main blocks performs the several operations necessary for the processing:
- iADC: analog to digital conversion board by a dual 8 bit 1GSPS Atmel ADC (AT84AD001B).
- iBOB: InfiniBand data trasmission board. A FPGA on board allows the pre-processing of the digitized data.
- BEE-2:
a 500GOPS processing board system where the correlation of signal from
the several antennas is performed (more
info).
 |
 |
|
|
||||||||||
 |
 |
 |
 |
 |
||||||
