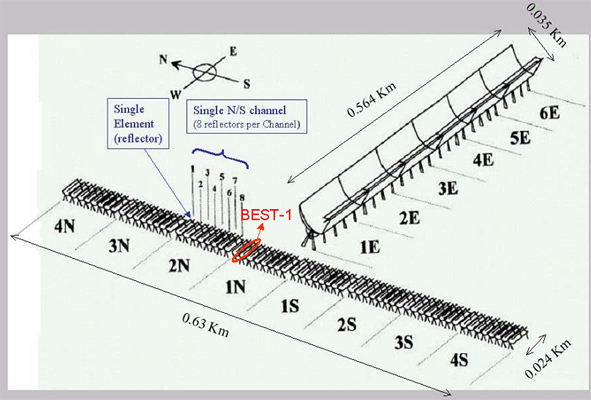

BEST - 1
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||

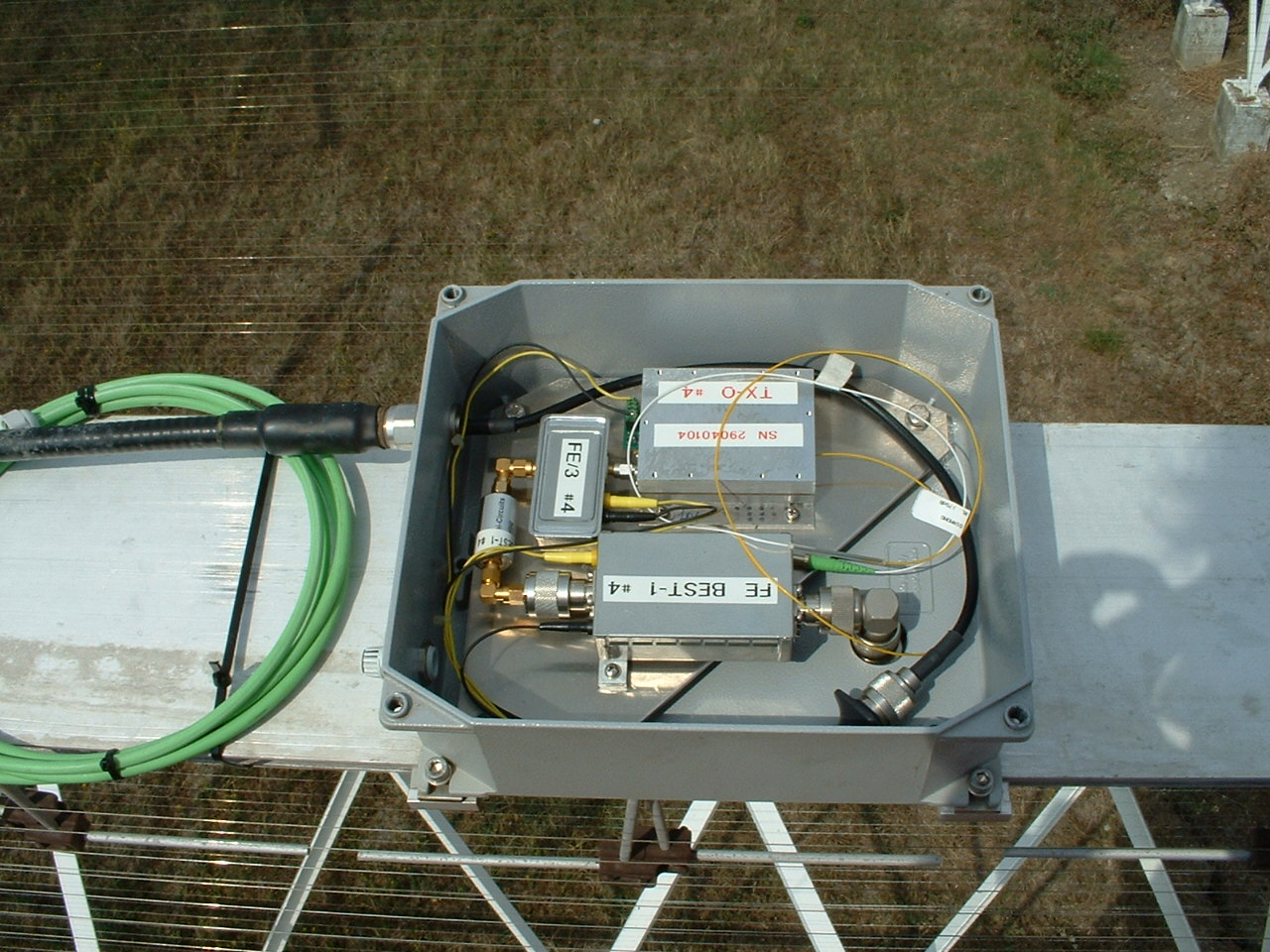

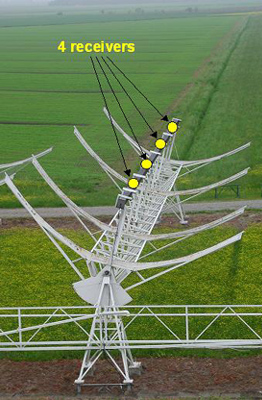

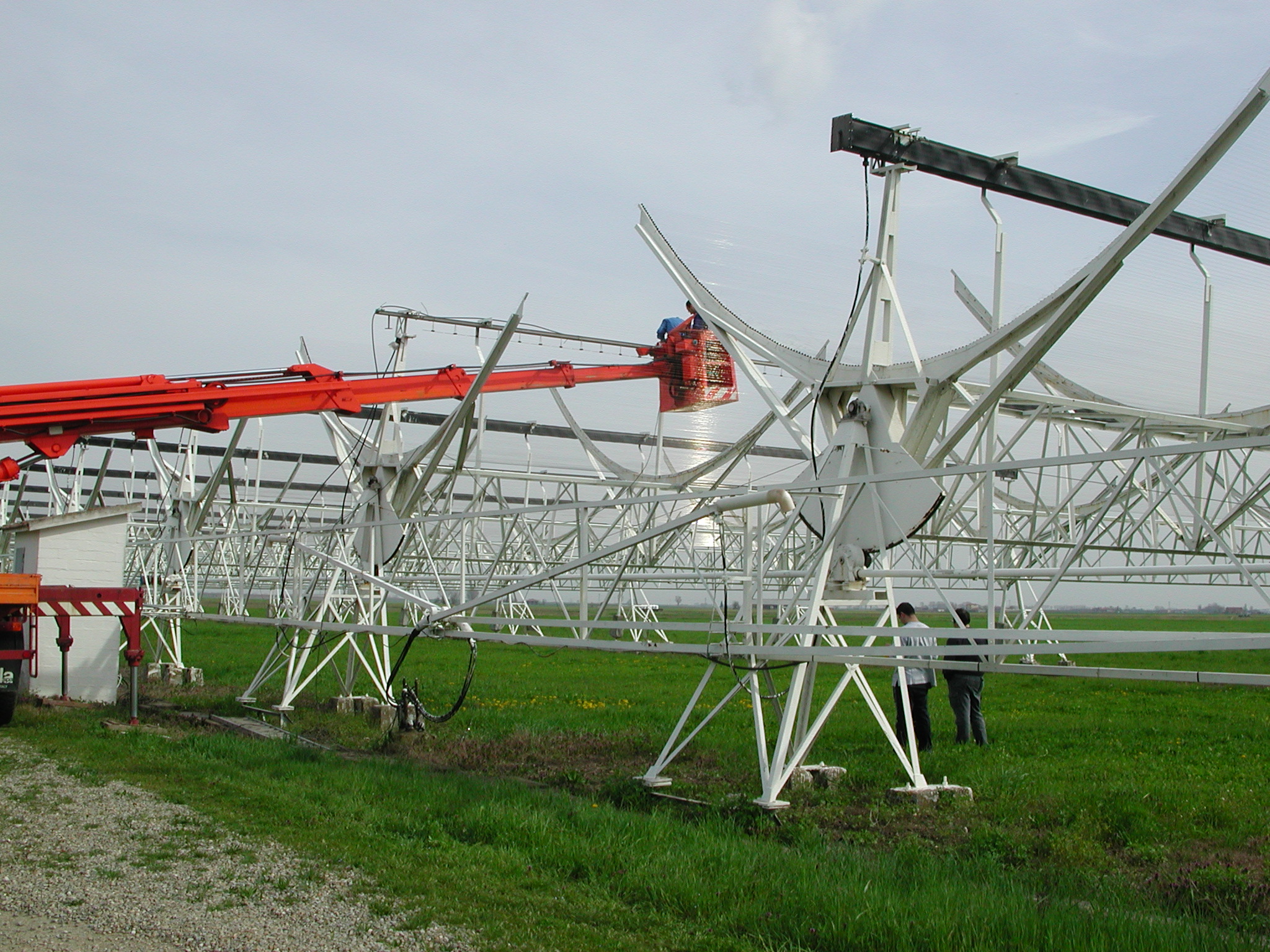

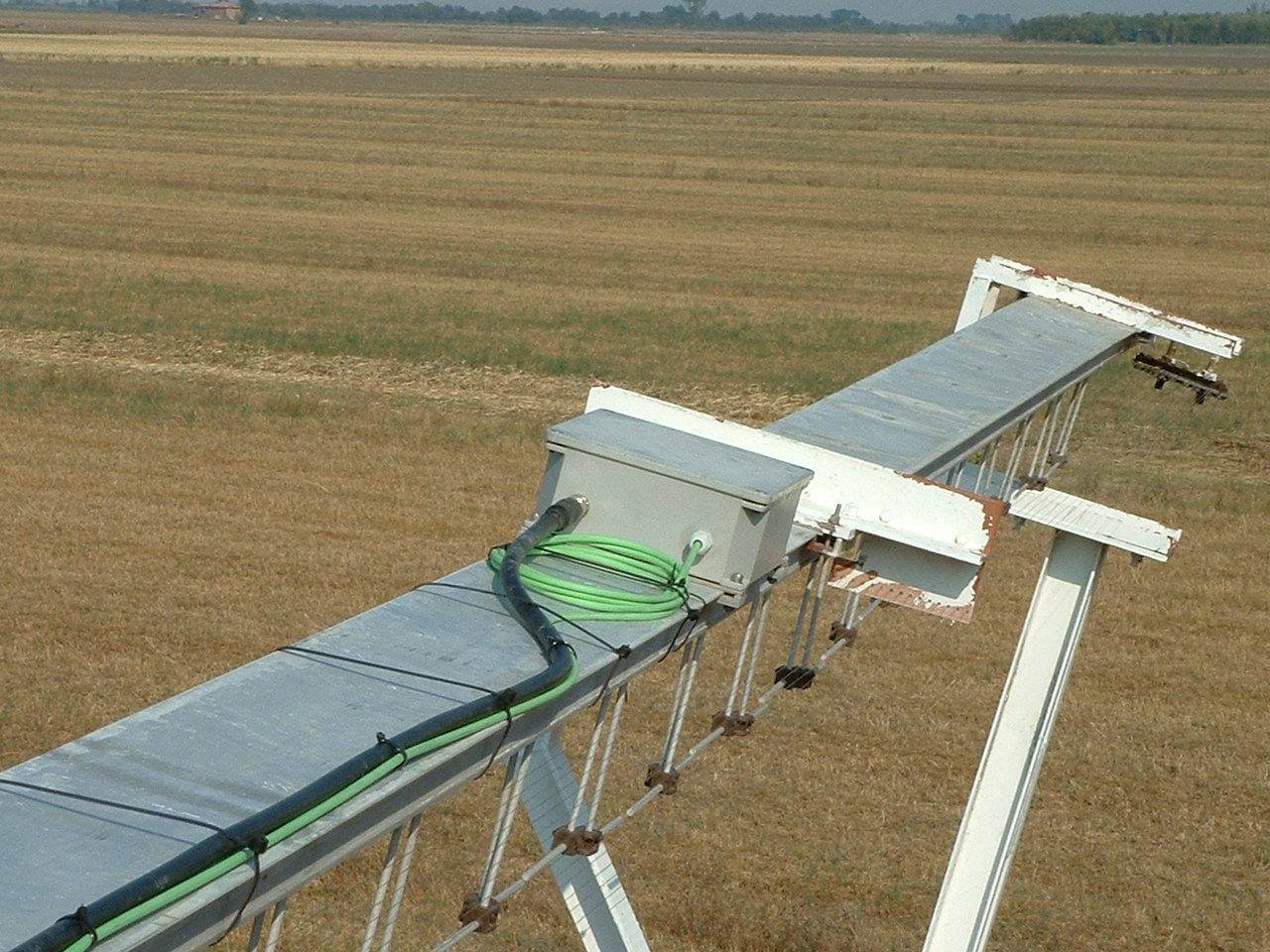

BEST-1 was completed with 4 front-ends, lasers installed on the focal

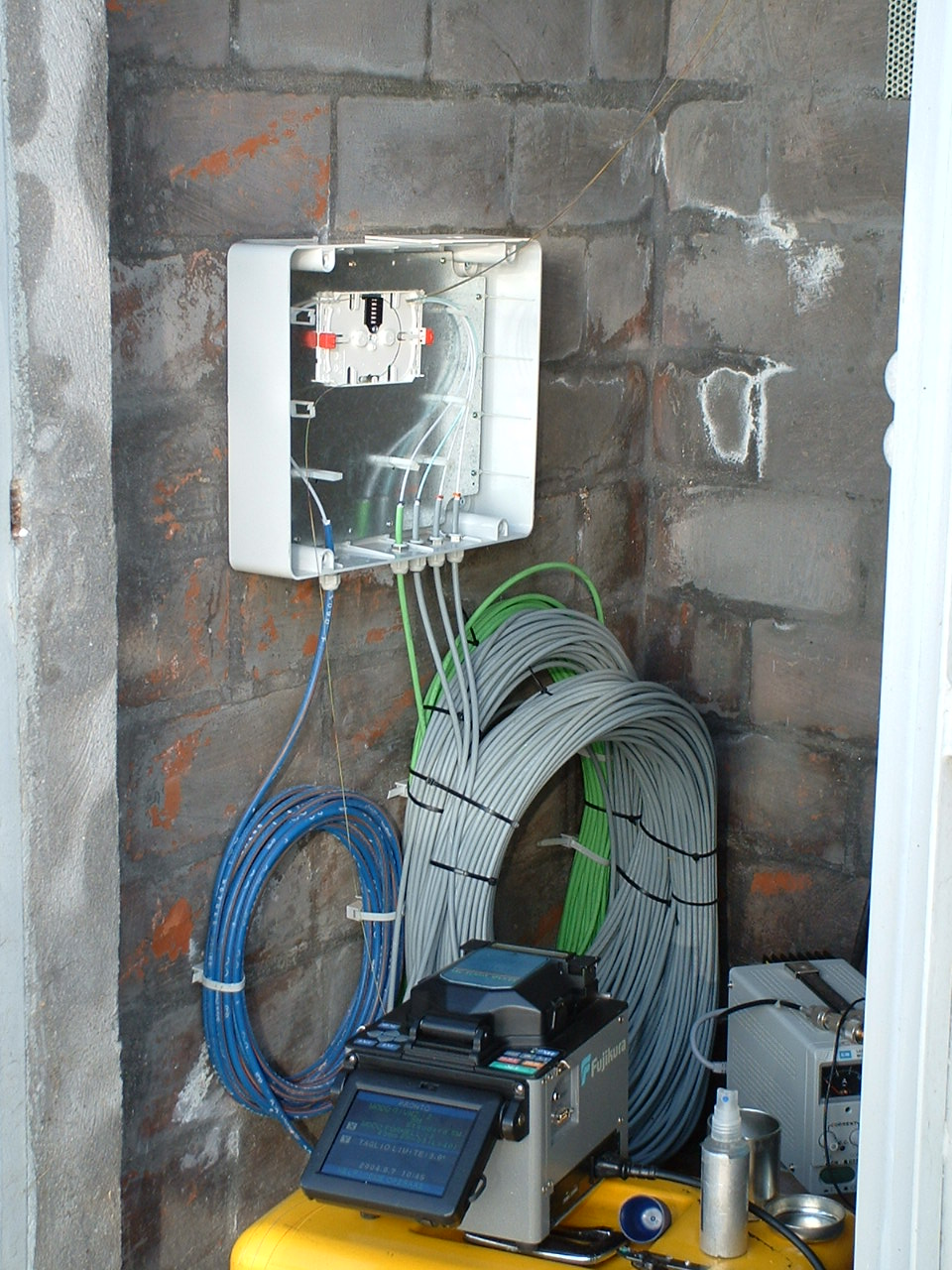

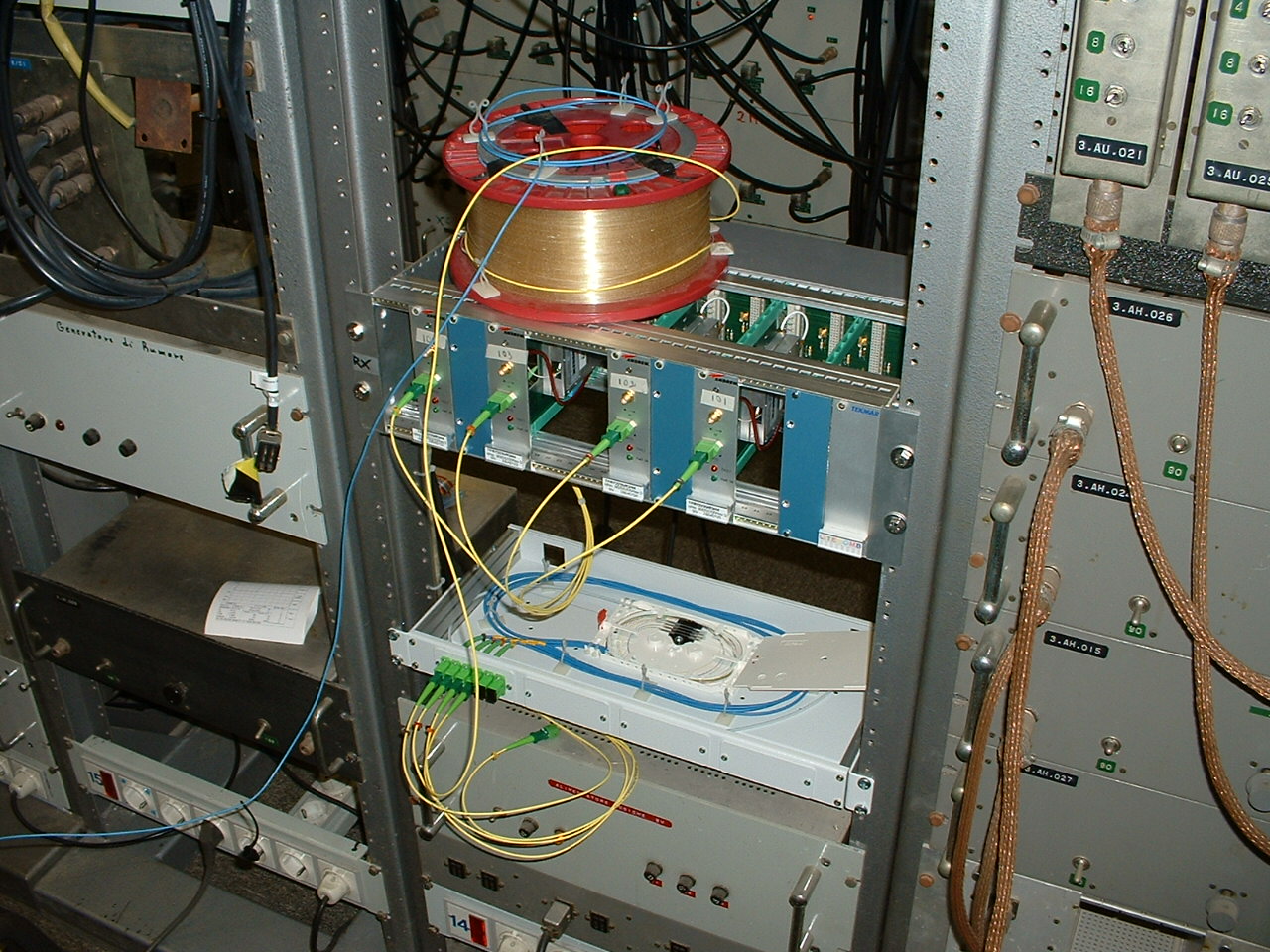

line and 4 fibers to transfer the optical analogue signal to the processing
room. Maximum length of the optical link is 700 meters.
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||

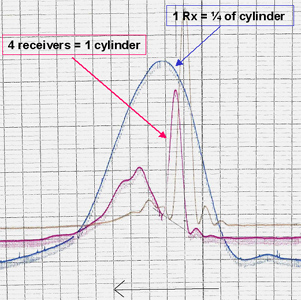

The first test was performed observing the Cassiopea A transit. To compare the output of BEST-1, the old receiver of the Northern Cross Antenna was used. Using only a receiver (blue line) we obtain an aperture beam of 7.2°, whereas adding the signals coming from 4 receivers we obtain an aperture beam of 1.8° (red line). Narrowing the beam of course we obtain a greater resolution and so we can observe with more detail the radio source.
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
